Hydraulic Automatic Pipe-aend Shaping Machine

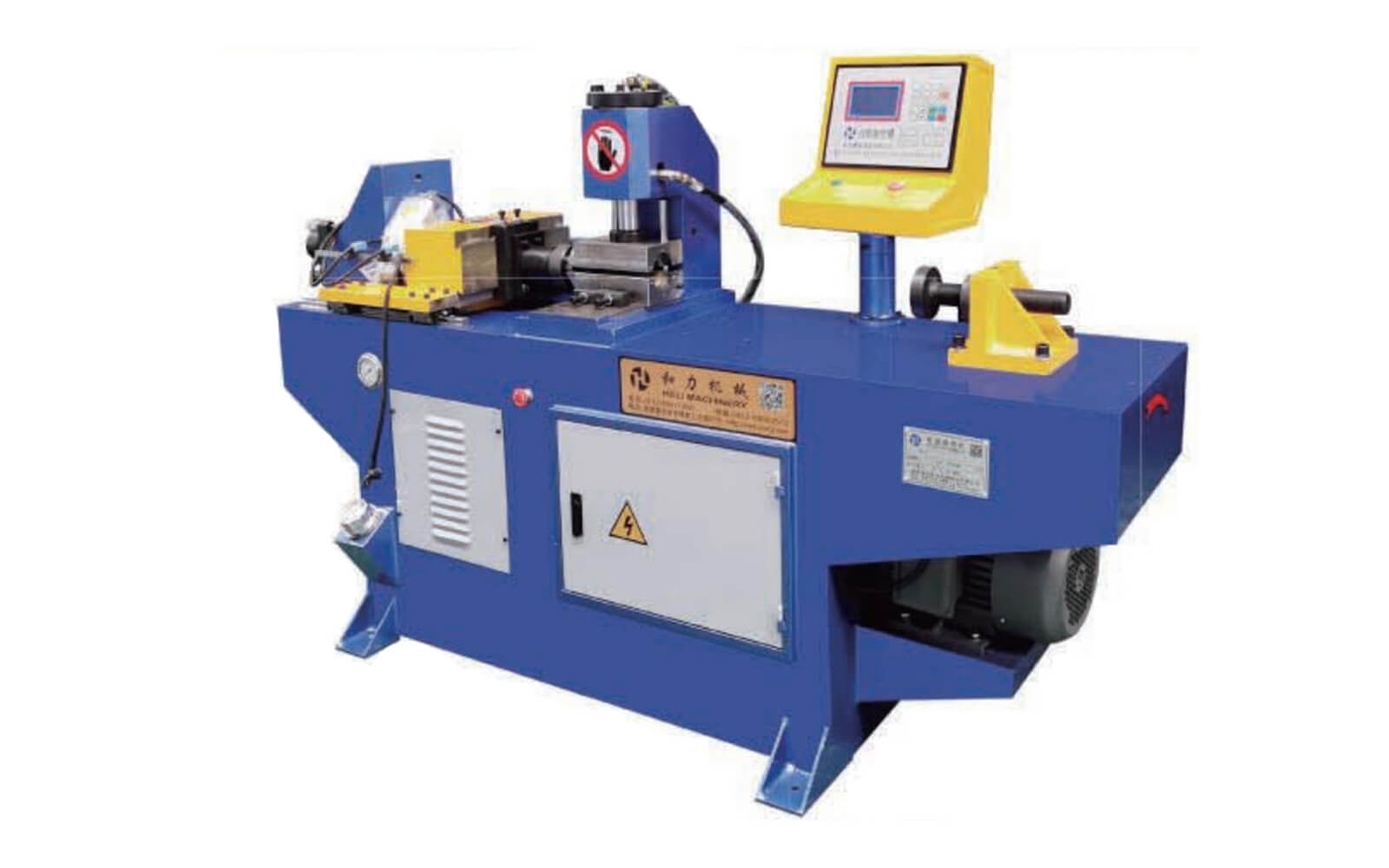

Single head hydraulic automatic pipe-aend shaping machine
Performance Features:
The tube end forming machines adopt linear guides as carriers,for abrasion-free operation; thanks to this, the products are nearlyidentical. The machines are suitable for end processing of ironpipes,furniture, cars, air conditioners, fuel pipelines, etc.
Double head hvdraulic automatic pipe-aend shaping machine
Performance Features:
1.Both ends of the tubes can be processed simultaneously,which means high efficiency and sound accuracy;
2 Length of the work-piece to be processed can be adjustedaccording to customer requirements;
3.Multiple clamping is available as an option, to ensure thatthe tubes don’t get loosened during processing;
4.The hydraulic synchronization system ensures accurateprocessing.
Main Technical Parameter
| Project/model | TM40/1S/2S/3S | TM60/1S/2S/3S | TM80/1S/2S/3S | TM100/1S/2S/3S | TM110/1S/2S/3S |
|---|---|---|---|---|---|
| Most suitable pipe | Φ40×2.0t | Φ60×2.0t | Φ80×2.0t | Φ100×3.0t | Φ110×4.0t |
| The maximum working schedule | 100mm | 130mm | 130mm | 150mm | 150mm |
| Hydraulic power | 12mpa | 12mpa | 12mpa | 14mpa | 14mpa |
| Working speed | 100mm in 3-4sec | 100mm in 3-4sec | 100mm in 3-4sec | 140mm in 6-7sec | 140mm in 8-9sec |
| Machine size | 2200×680×140mm | 2200×700×1400mm | 2400×900×1400mm | 2400×900×1600mm | 2700×1000×1800mm |
| Machine weight | 1100kg | 1250kg | 1350kg | 1800kg | 2500kg |
